Name: Mini Sliding Cylinder Double-acting Pneumatic Cylinder SLT Series SLT-16-10-P-A
Brand: FENGHUA FLUID AUTOMATIC CONTROL CO.,LTD
SKU: SLT-16-10-PA
Price: 50.00 USD
Availability: InStock

Rumah Produk Pneumatic Air Cylinder

Mini Sliding Cylinder Double-acting Pneumatic Cylinder SLT Series SLT-16-10-P-A

Detail produk:

Tempat asal:	Ningbo Cina (Daratan)
Nama merek:	FLUIDAC or OEM
Sertifikasi:	ISO9001
Nomor model:	SLT-16-10-PA

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Kemasan rincian:	Kotak, Karton, Kotak kayu, Palet
Waktu pengiriman:	Dalam waktu 20 hari setelah menerima pembayaran atau deposit
Syarat-syarat pembayaran:	TT Advance/deposit 30%,70% dengan salinan Bill oflading,Western Union,Paypal
Menyediakan kemampuan:	1000 Potongan Per Bulan

Kontak

Detil Deskripsi produk

Ukuran lubang (mm):	6mm~25mm	Pola gerak:	Aksi Ganda
Kisaran Tekanan Operasi:	0.15 ~ 1.0mpa	Media Kerja:	Udara Terkompresi Kering
Bahan:	Paduan Aluminium	Stroke (mm):	10.20.30.40.50.80.100.125.150.200
Menyoroti:	Mini sliding pneumatic cylinder , Double-acting air cylinder SLT series , Pneumatic cylinder SLT-16-10-P-A

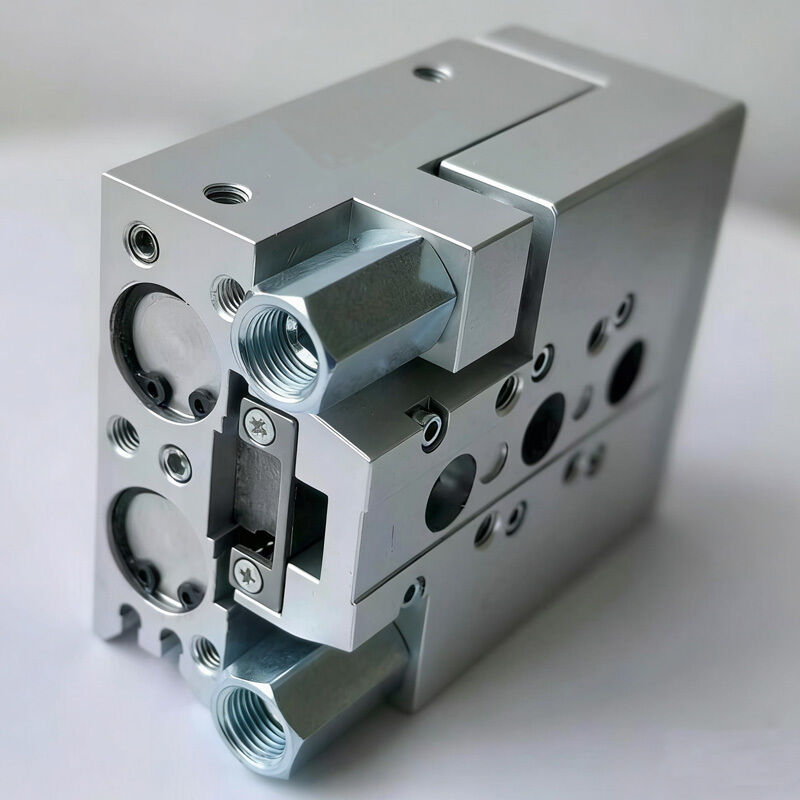

Mini Sliding Cylinder Double-acting Pneumatic Cylinder SLT Series SLT-16-10-P-A

SLT Series sliding double acting Pneumatic air cylinder Bore size 6mm-25mm

SLT -16 - 80 - P - A

└─→ Type: Double acting Mini slide cylinder

└─→Piston Diameter (mm):6.10.16.20.25

└─→Stroke (mm): 10.20.30.40.50.80.100.125.150.200

└─→Cushion Type: Elastic cushion, Non-adjustable

└─→Position Sensing: Via Sensor

Mini Sliding Cylinder Double-acting Pneumatic Cylinder SLT Series SLT-16-10-P-A 0

Piston Dia.	Width (W)	Height(H)
2*6mm	35	20mm
2*10mm	50	30mm
2*16mm	66	40mm
2*20mm	85	49mm
2*25mm	104	60mm

Operating and Environmental Conditions

Piston Diameter ⌀ [mm]	6	10	16	20	25
Working Medium	Dry compressed air, lubricated or unlubricated
Operating Pressure [bar]	1.5 ... 10	1 ... 10
Ambient Temperature¹⁾ [°C]	-20 ... +60
Corrosion Resistance Class CRC²⁾	1

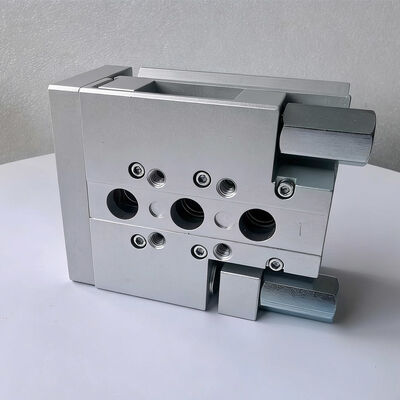

Mini Sliding Cylinder Double-acting Pneumatic Cylinder SLT Series SLT-16-10-P-A 1

Pneumatic Sliding cylinder,Air cylinder, Linear actuator,Gas cylinder,Double shaft air cylinder,Twin rod Pneumatic cyinder,Parallel air cylinder, compact air cylinder,table turnable air cyinder,rotary air cylinder,Rotary table cyinder, swivel table cylinder

Label:

Kontak Person: Mr. JOHNNY CHEN

Tel: 86-574-88871069

Faks: 86-574-88882296
