| Tempat asal: | Ningbo Cina (Daratan) |
| Nama merek: | FLUIDAC or OEM |
| Sertifikasi: | ISO9001/ISO5211 |
| Nomor model: | BVP41-2-15-GB |
| Kuantitas min Order: | 5 PCS |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Kotak, Karton, Kotak kayu, Palet |
| Waktu pengiriman: | Dalam waktu 20 hari setelah menerima pembayaran atau deposit |
| Syarat-syarat pembayaran: | TT Advance/30% deposit, 70% dengan menyalin Bill oflading, Western Union, Paypal |
| Menyediakan kemampuan: | 2000PCS per Bulan |
| Rentang Ukuran:: | DN15~DN150 | Tekanan Normal: | PN1.6~2.5MPa |
|---|---|---|---|
| Bahan Tubuh: | Baja tahan karat (WCB.CF8.CF8M/I.Ti.Ni) | Media Kerja: | Air, minyak, gas, cair |
| Modus Akting: | Akting Ganda, Akting Tunggal | Jumlah Cara: | 2 jalan |
| Bahan Segel: | PTFE, PPL | Aplikasi: | Air & Air Limbah, Tekstil, Makanan & Minuman, Kimia dll. |
| Menyoroti: | dn100 2 way pneumatic solenoid valve,dn15 flange ball valve,sus 2 way pneumatic solenoid valve |
||

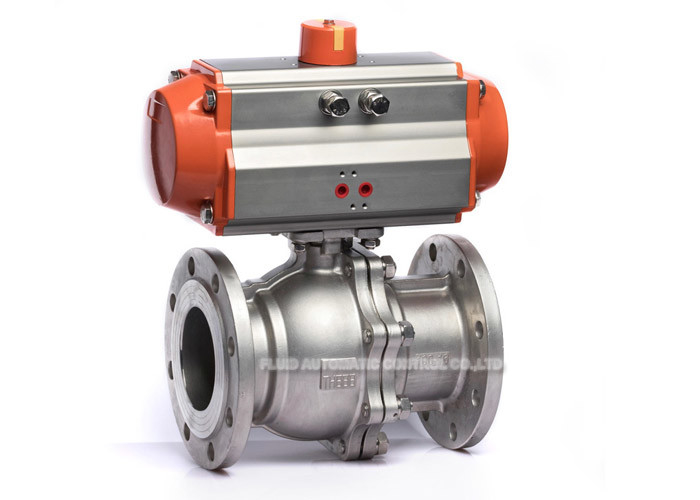

DN15-DN100 2 Way Stainless Steel Pneumatic Actuated Flange Ball Valve
2 way double flange stainless steel pneumatic actuated ball valve koneksi ujung bergelang.
cara memesan:
| BV | P | 4 | 1 | 2 | 15 | |
| Katup bola | Jenis: P: pneumatik L: Tuas E: Listrik |
Koneksi: 1: Sambungan utas wanita 2: Koneksi utas pria 4: Koneksi flensa 8: Jenis penjepit |
Struktur: 1: Lubang lurus 2:Y tipe Y 3-arah 4:L tipe L 3-arah 5: T tipe T 3-arah |
Struktur tandem: 1: 1 PCS jenis 2: 2 PCS tipe 3: 3 PCS tipe Kosong: lainnya |
Diameter normal: 08:1/4" 10:3/8" 15:1/2" 20:3/4" 25: 1" 32: 1-1/4" 40: 1-1/2" 50: 2" 65: 2-1/2" 80: 3" 100: 4" 125: 5" 150: 6" |
Bahan tubuh katup: Z: CI T: DI P: Baja tahan karat 304 R: Baja tahan karat 316 C: Baja karbon |
Fitur:
| Ukuran | DN15~DN150 |
| Tekanan nominal | PN1.6,2.5MPa |
| Tekanan uji kekuatan | PT2.4~8MPa |
| Tekanan uji segel | 0.6MPa |
| Bahan Tubuh | Baja tahan karat (WCB.CF8.CF8M/I.Ti.Ni) |
| Bahan Segel | PTFE, PPL |
| Media Kerja | Air, minyak, gas |
| Suhu kerja | PTFE: -20℃~+150 |
| PPL:-20℃~+200 | |
| Modus Akting | Akting Ganda, Akting Tunggal |
| Jumlah cara | 2 jalan |
| Aplikasi | Air & Air Limbah, Tekstil, Makanan & Minuman, Kimia dll. |
Spesifikasi:
| Model | INCI | DN | D | L | S | D1 | D2 | D3 | T | F | n-φd | ISO5211 | H | AKTUATOR |
| BVP41-2-15-GB | 1/2" | 15 | 15 | 130 | 9 | 45 | 65 | 95 | 14 | 2 | 4-φ14 | F03/F04 | 10.5 | AT052DA |
| BVP41-2-20-GB | 3/4" | 20 | 20 | 140 | 9 | 55 | 75 | 105 | 14 | 2 | 4-φ14 | F03/F04 | 10.7 | AT052DA |
| BVP41-2-25-GB | 1" | 25 | 25 | 150 | 11 | 65 | 85 | 115 | 14 | 2 | 4-φ14 | F04/F05 | 11 | AT063DA |
| BVP41-2-32-GB | 1-1/4" | 32 | 32 | 165 | 11 | 78 | 100 | 135 | 16 | 2 | 4-φ18 | F04/F05 | 11.5 | AT063DA |
| BVP41-2-40-GB | 1-1/2" | 40 | 38 | 180 | 14 | 85 | 110 | 145 | 16 | 2 | 4-φ18 | F05/F07 | 17 | AT075DA |
| BVP41-2-50-GB | 2" | 50 | 50 | 200 | 14 | 100 | 125 | 160 | 16 | 3 | 4-φ18 | F05/F07 | 17 | AT083DA |
| BVP41-2-65-GB | 2-1/2" | 65 | 65 | 220 | 17 | 120 | 145 | 180 | 18 | 3 | 4-φ18 | F07/F10 | 20 | AT092DA |
| BVP41-2-80-GB | 3" | 80 | 76 | 250 | 17 | 135 | 160 | 195 | 20 | 3 | 8-φ18 | F07/F10 | 20 | AT105DA |
| BVP41-2-100-GB | 4" | 100 | 100 | 280 | 19 | 155 | 180 | 215 | 20 | 3 | 8-φ18 | F07/F10 | 22,5 | AT125DA |
