| Tempat asal: | Ningbo China(Mainland) |
| Nama merek: | FLUIDAC or OEM |
| Sertifikasi: | ISO9001 |
| Nomor model: | HPV-23-JD-8P2 |
| Kuantitas min Order: | 5 piece |
|---|---|
| Harga: | USD10-- |
| Kemasan rincian: | Boxes, Cartons,Wooden cases,Pallets |
| Waktu pengiriman: | Within 20 days after receiving payment or deposit |
| Syarat-syarat pembayaran: | TT Advance/30% deposit, 70% dengan menyalin Bill oflading, Western Union, Paypal |
| Menyediakan kemampuan: | 10000 Pieces Per month |
| Tekanan tinggi: | 2.4MPa | Ukuran pelabuhan: | G1/4 hingga G1/2 |
|---|---|---|---|
| Jenis: | Dua posisi Tiga arah | Tegangan kumparan: | 12VDC|24VAC|24VDC|110VAC|220VAC |
| Bahan: | Kuningan | Pola Gerak: | ilot Dioperasikan, tipe Inner Pilot dan Eksternal Pilot |
| Nama Produk: | Katup Dioperasikan Solenoid | ||
| Cahaya Tinggi: | Solenoid Operated Valve,Pneumatic Control Valve,2.4Mpa directional control solenoid valve |
||

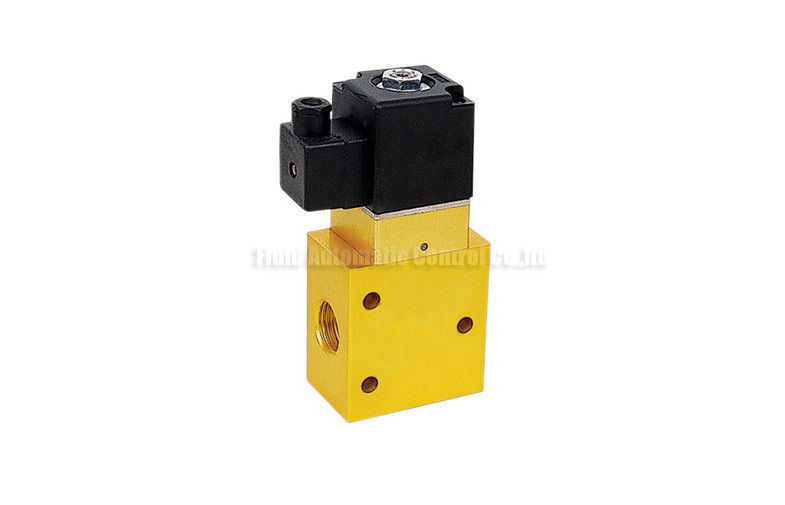

2.4Mpa Solenoid Operated Directional Control Valve G1/8 External Pilot Operated
Two positon three way 2.4Mpa high pressure directional control solenoid valve with External Pilot operated size G1/4 ~G1/2 e.g HPV-23-JD-8P2
Quick Detail:
* HPV series high pressure directional control solenoid valve
* High pressure up to 2.4MPa
* Pilot Operated,Inner Pilot type and External Pilot for option
* Port size from G1/4 to G1/2,External Pilot connecting port size G1/8
* Stop type structure ensure High stability
* Two position Three way function pattern
* Safety and long life service cycle
Applications:
HPV series high pressure solenoid valve with stop structure design,high stability,safety already used maturely and widely in the High pressure equipment like the blowing bottle pneumatic system,especially applicable to the big Volume,special shape PET bottle production equipment
External Pilot can separte the pilot pressure with the working equipment pressure,Using the Outside pressure to control for example the Vacuum system.
Specifications:
|
ORDERING CODE |
|||||
|
HPV |
23 |
JD |
8 |
AC220V |
P2 |
|
Type |
Function Type |
Structure type |
Orifice Size |
Voltage |
Pliot Operated Pattern |
|
HPV:HPV Series High Pressure Directional Control Valve |
23:Two Position Three Way |
Electro-control Stop type |
08:G1/4" |
AC220V:220VAC |
Blank:Inner Pilot Operated |
|
AC110V:110VAC |
|||||
|
15:G1/2" |
DC24V:24VDC |
P2:External Pilot Operated |
|||
|
DC12V:12VDC |
|||||
|
AC24V:24VAC |
|||||
|
SPECIFICATION |
||||
|
Model No |
HPV-23-JD-08 |
HPV-23-JD-08-P2 |
HPV-23-JD-15 |
HPV-23-JD-15-P2 |
|
Position And Way Numbers |
Two Position-Three Way |
|||
|
Working Medium |
Compressed 40 Micron Filtered Air |
|||
|
Motion Pattern |
Inner Pilot |
External Pilot |
Inner Pilot |
External Pilot |
|
Structure Type |
Stop type |
|||
|
Working Pressure |
0.25~2.4MPa |
|||
|
Operating Temperature |
5~50℃ |
|||
|
Orifice Size (mm) DN |
8 |
15 |
||
|
Port Size |
G1/4" |
G1/4", External Pilot connect G1/8" |
G1/2" or G3/8” |
G1/2"Or G3/8”, External Pilot connect G1/8" |
Pneumatic valve,High pressure solenoid valve,External Pilot Operated solenoid valve
